Name: Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming
Brand: Sichuan Aixiang Agricultural Technology Co., Ltd.
SKU: 피스마트-A
Price: 6,430.00 USD
Availability: InStock

집 > 상품 > 관개 수정 시스템 >

Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming

원래 장소:

중국

브랜드 이름:

FARMNET

모델 번호:

피스마트-A

저희와 연락

요구 인용문

Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming

제품 상세정보

어플리케이션:

비료 살포기

전력(w):

2.2KW

차원 (L*W*H):

911*905*1438mm

전원공급장치:

380V AC 50Hz

입구와 출구:

DN40

비료 기계 네트워킹:

와이파이/WAN/4G

휴먼 머신 인터페이스:

10인치 용량 터치 스크린

EC/PH 센서:

표준 단일 채널 EC/PH

비료 인젝션 채널:

비료 2개 산 1개(표준) 최대 4채널

지불과 운송 용어

최소 주문 수량

1개 조각

가격

$6003-6857

포장 세부 사항

우리의 수출 포장 : 1. 강철 (번들링 및 포장) 2. 장비, 예비 부품 (목재 케이스, 상자 포장) 3. PC 시트, 유리, 필름 및 기타 독립 포장

배달 시간

25-30 일

지불 조건

L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram

꽃 파종을 위한 OEM ODM 농가 액비 관수 시스템

최상의 가격을 얻으세요

AC 380V 물과 비료 통합 시스템 수경법 비료 기계

최상의 가격을 얻으세요

110L 자동 시비기계 통합 관개 수정 시스템

최상의 가격을 얻으세요

온실 관개 비료 기계 1KW 자동차 비료 시스템

최상의 가격을 얻으세요

저희와 연락

+8613982313279

sales04@axgreenhouse.com

86--28-68745748

지금 접촉하세요

제품 설명

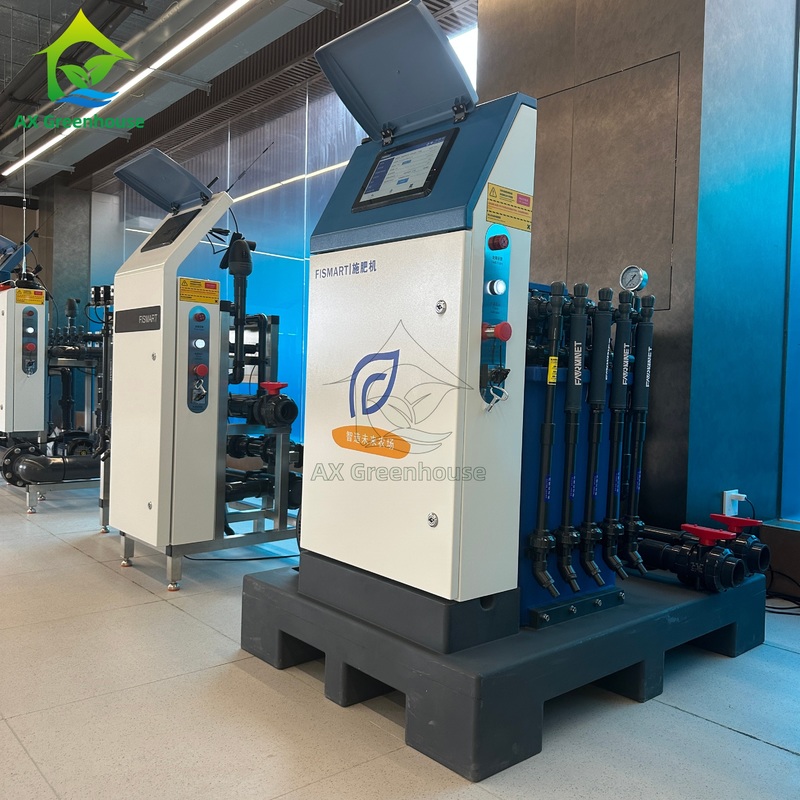

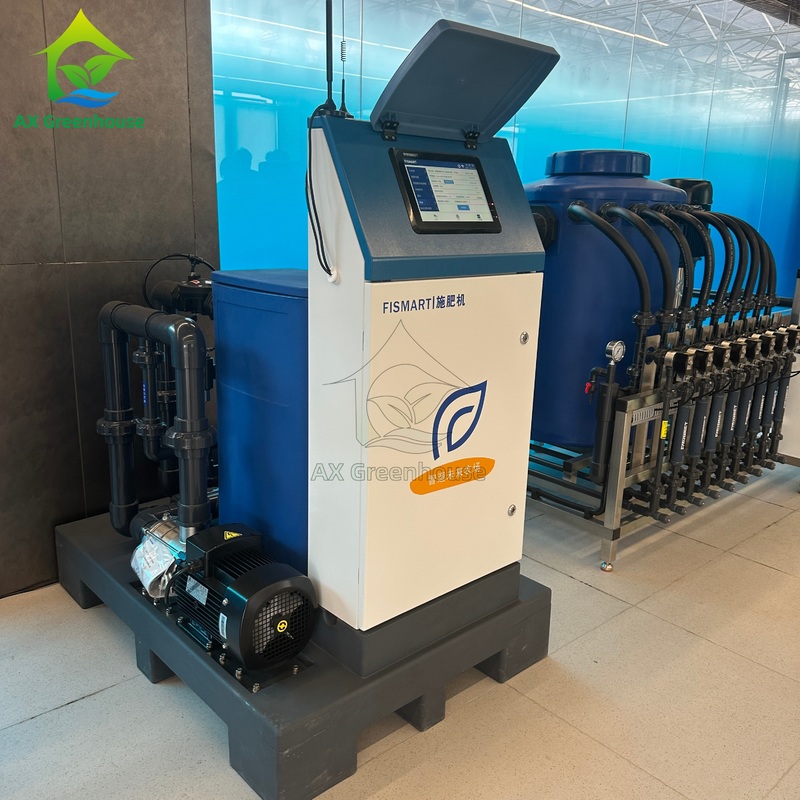

FISMART-A

FISMART-A is loved by a wide range of growers due to its ultra-high cost effectiveness.

A newly designed operating system allows every use to efficiently and safely complete irrigation and fertilization through the simplest and most intelligent operations.

Equipped with high-precision EC and PH sensors for accurate measurement.

By using OWM modulation technology,we can perfectly control the fertilizer absorption ratio and ensure precise fertilizer distribution,making us a trustworthy production partner.

Upgraded Protection, Strong And Durable As an agricultural production tool, strongness is extremely important. FISMART-A adopts 304 stainless steel material and robot welding technology, and the overall structural strength is extremely high, acid-resistant and corrosion-resistant. Intelligent Perception Of Precise Fertilizer Distribution, A Reliable Production Tool Equipped with high-precision EC and PH sensors for accurate measurement. Through PWM modulation technology, it perfectly controls the fertilizer absorption ratio and ensures accurate fertilizer distribution. It is a production partner worthy of complete trust. Flexible Response To Multiple Valve Control Modes Can be connected to three types of valve controllers: multi-line and bus wireless, and can be configured and combined at will to easily cope with valve control. Internet Of Things Support, Support Remote Control FISMART-A supports multiple ways of networking, WIFI/WAN/4G are all available. Remote control through mobile phone APP, even if you are far away, it is close at hand.

Size	911mm* 905mm* 1438mm
Weight	129Kg
Power Supply	380V AC 50Hz
Power	2.2KW
Inlet And Outlet	DN40
Type	Bypass

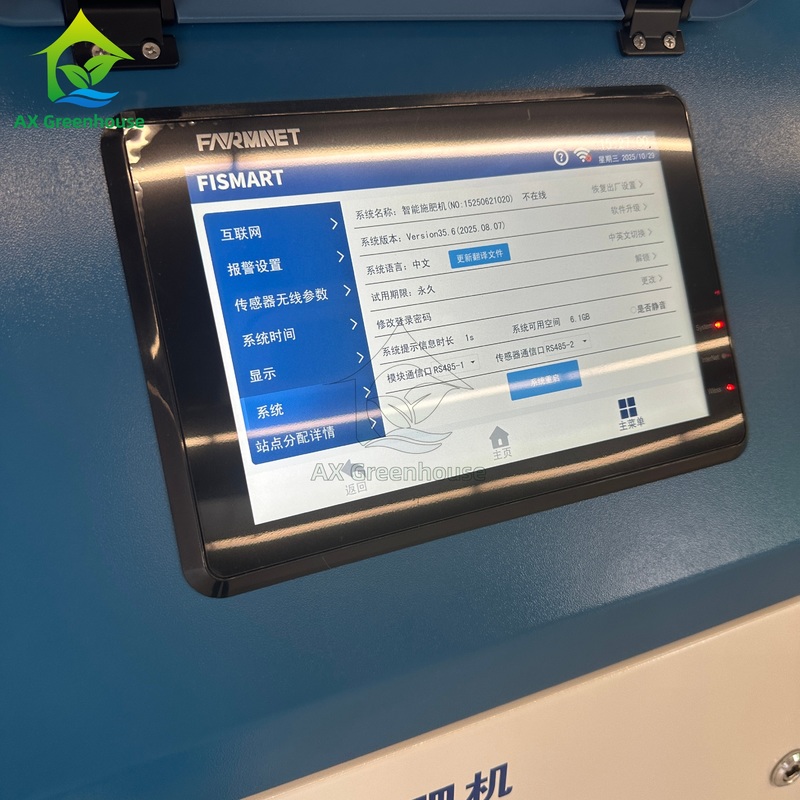

Human-machine Interface	10-inch capacitive touch screen
Pump (P/Q/H)	Lingxiao (2.2KW/8m3/48m)
EC Pre-control	No
EC/PH Sensor	Standard single-channel EC/PH
Inverter	No
Water Supply Pump	External
Flowmeter	Clip flowmeter
Stabilization Time	60s
Fertilizer Distribution Accuracy	±0.1ms/cm
Pipeline Pressure	＜6.0bar
Fertilizer Distribution Method	EC/PH automatic adjustment or proportional adjustment, each channel can set the fertilizer absorption ratio

태그：
